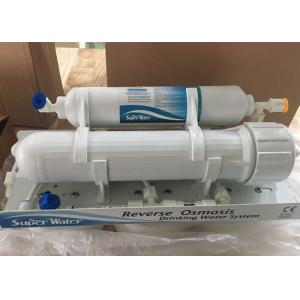

5 stage reverse osmosis system without pump
Specifications:
| Item No | KK-RO50G-G |
| Description | Manual Flush 5 stage RO system without pump |
| Capacity | 50/75/100GPD |
| Flush Type | manual Flush |

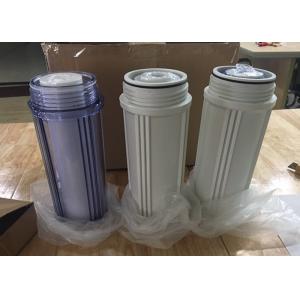

| Housing | KK-FS-10-01 10" single“O”ring housing & clear 10"single “O”ring
housing |
| Fitting Type | JACO or Quick Fitting |
| Diaphragm Booster Pump with Adaptor 110/220V,50/60HZ |
| RO Membrane | VONTRON or CORPITE Membrane(50GPD,75GPD,100GPD) |
| Faucet | Can be choosen (KKGN-01,KKGN-19) |
| Pressure Tank | 3.2-4.0G PlasticTank or Steel tank |
| Unit packing Dimension | 41*35*58cm,one pcs/ctn,972PCS/4OHQ
|
Filter Cartridge
| Stage | Description | Component Item No. | Replace time | Function |
| 1st | 5um pp Spun Fiber | PP-10” | 2-3months | Remove the particles,dust,mud etc. |
| 2nd | Granular Carbon Filter | GAC-10”(UDF-10) | 4-6month | Remove the chlorine,organics,odor,smell turbidity etc. |
| 3rd | Block Carbon Filter | CTO-10” | 4-6months | Remove the chlorine,odor,smell and suspending particles. |
| 4th | RO membrane | CSM or FCS or FILMTEC | 1-2yesrs | Remove the bacteria,heavy metal,salt,bad mineral substance and
other dissolved matter and chemical drug in the running water |
| 5th | Post inline Carbon Filter | T-33 | 1year | Adjust the taste. |
| 6th | UFmembrane | UF-10 | 1-2years | Concentrates particles,collolds and separates them from raw water. |
| | | | |
Residetial water purification machine, drinking water machine.
High grade RO membrane separation technology Automatic backward
washing function to extend the RO membrane life span
Micorcomputerized, close cycled and automatic purification process
to
eliminate secondary pollution First innovated water over loading
and no water protection system
This state-of-the-art Under Sink RO system was designed by our
engineers with the most modern materials and technologies to
produce a truly affordable and reliable water treatment device.
The semi-manifold assembly was designed to save your labor costs
and to lessen the possibility of leaks in the field.
The standard 5-stage system comes with a sediment filter, GAC
filter, carbon block and a 50 GPD membrane.
The system is competitively priced with conventional under-sink RO
systems. An optional inline 5th filter is available with GAC water
filter cartridge or any custom media you desire.
Product Function
Roughly filter the tap water with various water qualities in the
city with polypropylene (PP), and absorb the bad color, ardor with
granule activated carbon filter. Further absorb the filter water
pretreated by the residual chlorine, etc. with precision activated
carbon filter, force the filtered water for reverse osmosis
filtration, in order to produce pure water.
Comply with the newly RO technology, our RO system is designed for
places where feed water has very low water pressure (under 45PSI ),
or where the source water contains higher than normal amount of
dissolved solids. It uses high quality booster pump that can
provide 125PSI water pressure to pass through the membrane even
with areas under low water pressures.
